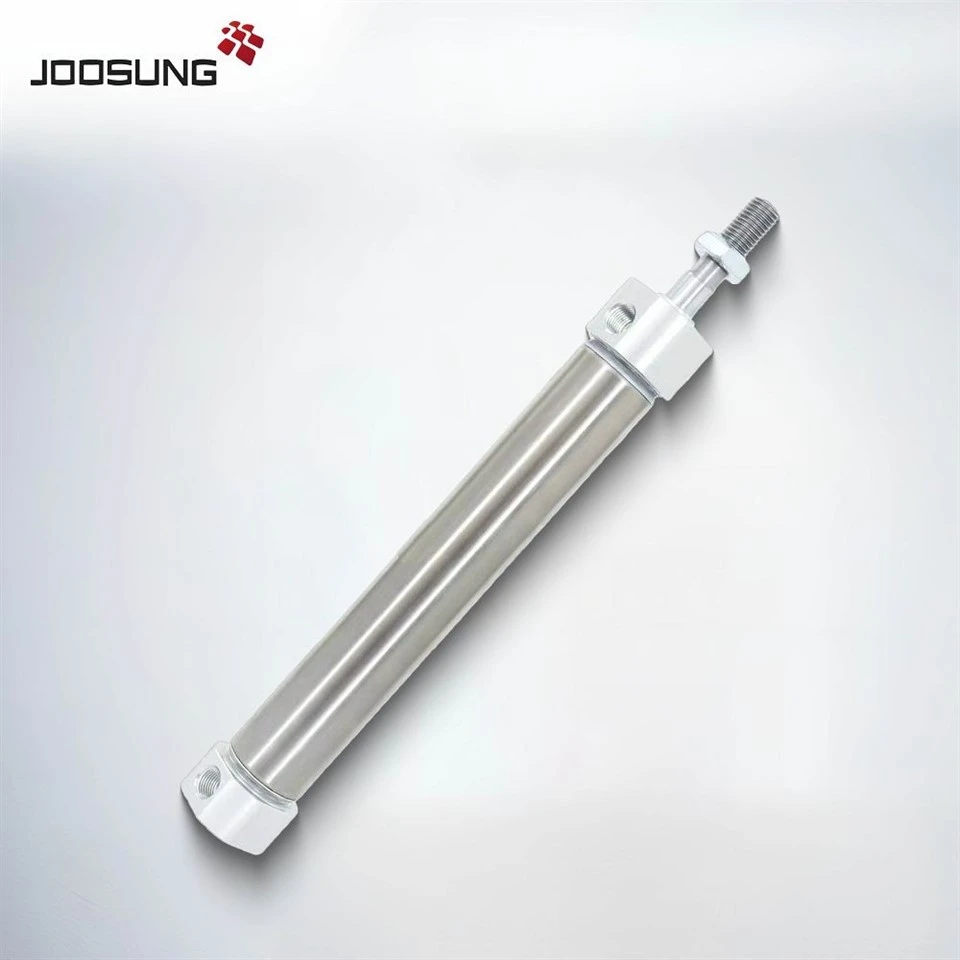

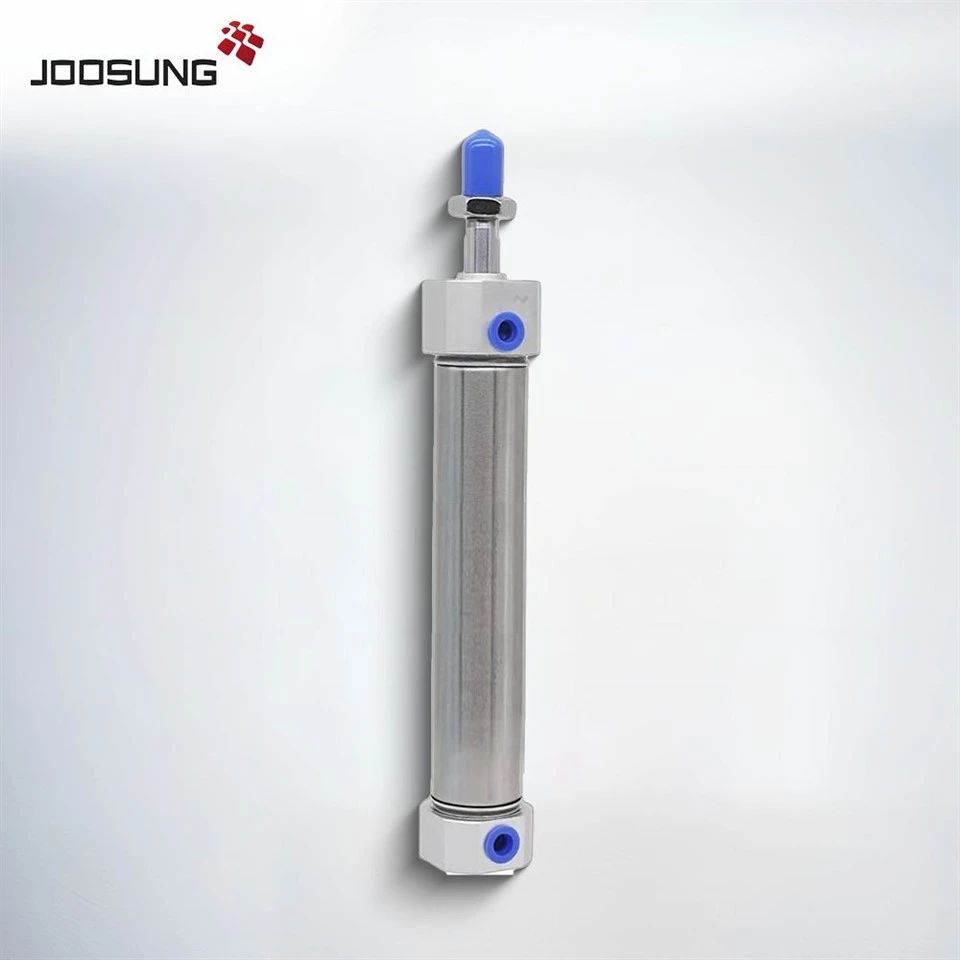

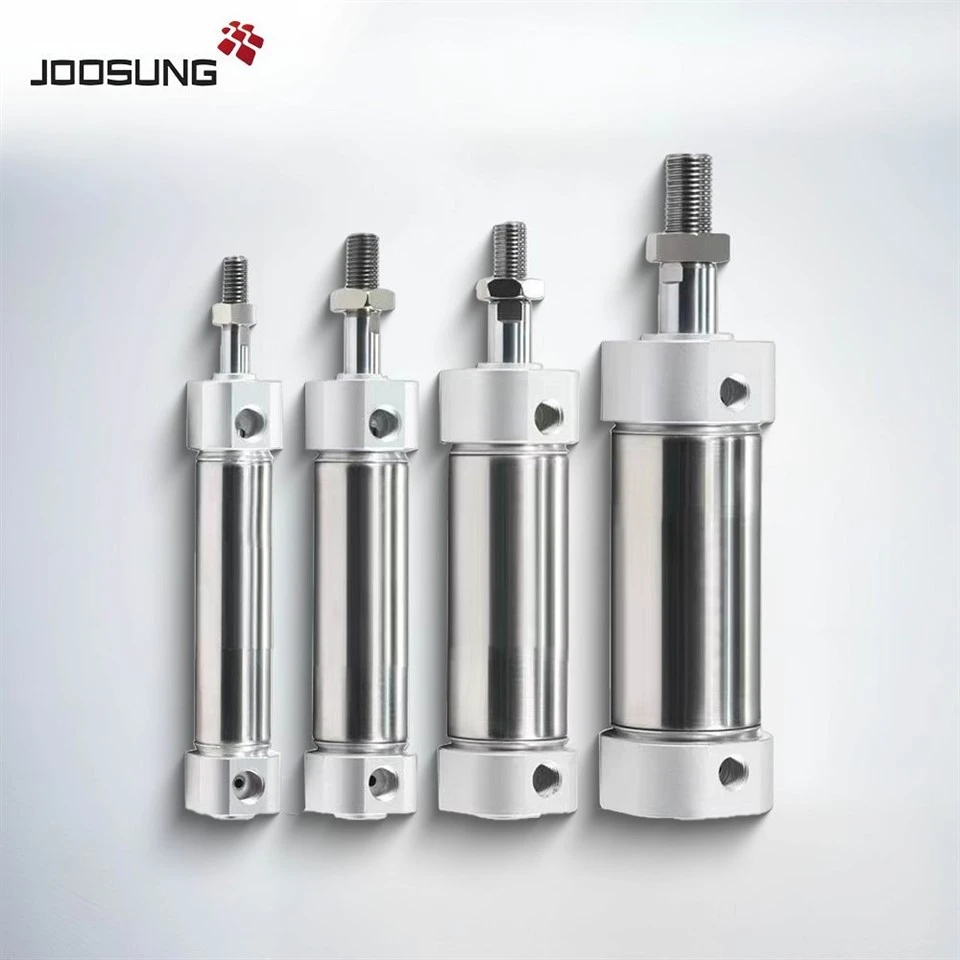

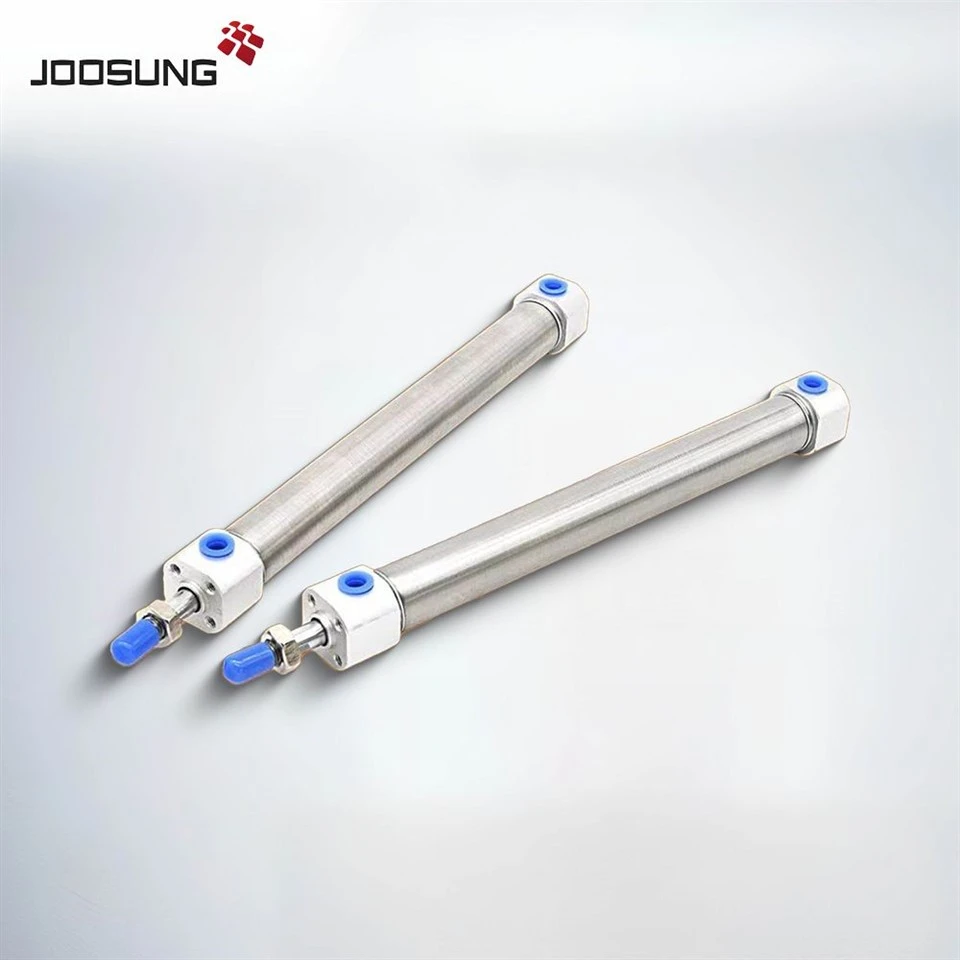

MG Series Stainless Steel Mini Sylinder wuxuu u hoggaansamaa heerarka yar yar ee dhululubada JIS, oo bixiya cabbir isku dhafan iyo adkeysi sare. Labanlaabkeeda{1} qaab dhismeedka xidhidhiyaha jihada ee kaydka saliidda ah waxa uu xaqiijiyaa dhaqdhaqaaqa siman iyo is-saliimaynta, halka suufka lidka ku ah -saamaynta saamayntu ay yarayso saamaynta inta lagu jiro jiho roganta. nidaamyada.
|
Sida loo dalbado MG Series Pneumatic Silinder |
||||
|
M |
G |
20 |
100 |
S |
|
Qaabka |
Cabbirka bore |
Stroke Silinder |
Magnet |
|
|
G: Silinda yar (Double acting) MG |
20 25 32 40 |
Faalig |
Banaan: Magnet la'aan |
|
|
GC: Silinda yar (Laba jilitaanka barkinta) MSG |
||||
|
SG:Mini cylinder (Single acting push) MTG |
||||
|
TG: Silinda yar (Single jilitaanka) MGD |
||||
|
GD: Silinda yar (Usha laba jibaaran) MGC |
20 25 32 40 50 63 |
|||
|
GCD: Silinda yar (Usha laba-geesoodka ah ee barkinta leh) MGCD |
||||
Raadinta adhululubo bir ah oo is haysta oo leh - barkimo iyo shaabad la isku halayn karo?
TheMG Series Stainless Steel Mini Sylinderwaxay keentaa adkeysiga, saxnaanta, iyo meel banaan - kaydinta rakibaadda habaynta otomaatiga ah ee casriga ah.
Nagala soo xidhiidh hadda si aad u hesho xaashiyaha xogta, moodooyinka 3D CAD, iyo qaabaynta la habeeyey ee ku habboon baahiyahaaga.
|
Tilmaamid |
|||||||
|
Cabbirka godka (mm) |
20 |
25 |
32 |
40 |
50 |
63 |
|
|
Ku-simaha |
MSG/MTG |
Keliya jilitaanka |
- |
||||
|
MG/MGD |
Laba jilitaanka |
- |
|||||
|
MGC/MGCD |
Laba jilitaanka barkinta |
||||||
|
Dheecaan |
Hawo (waxaa lagu sifeeyaa 40μm element filter) |
||||||
|
Hawlgalka |
Laba jilitaanka |
0.15 ~ 1.0MPa (22 ~ 145psi) (1.5 ~ 10.0bar) |
|||||
|
Keliya jilitaanka |
0.2 ~ 1.0MPa (28 ~ 145psi) (2.0 ~ 10.0bar) |
||||||
|
Cadaadiska caddaynta |
1.5MPa (215psi) (15bar) |
||||||
|
Heerka heerkulka |
-20~70 |
||||||
|
Xawaaraha inta u dhaxaysa mm/s |
Laba jilitaanka: 30 ~ 800 Kelida jilitaanka: 50 ~ 800 |
||||||
|
Dulqaadka istaroogga |
0~150+10>150+15 |
||||||
|
Nooca barkinta |
Barkin kala duwan, Bamper |
Barkin kala duwan |
|||||
|
Cabbirka dekedda |
Barkin kala duwan |
M5×0.8 |
1/8" |
1/4" |
|||
|
Bamper |
1/8" |
- |
|||||
|
Qaabka Taxanaha ah |
Qaababka la heli karo |
|
Taxanaha MG20 |
MG20-25,MG20-50,MG20-75,MG20-80,MG20-100,MG20-125,MG20-150,MG20-100,M G20-175,MG20-200,MG20-250,MG20-300,MG20-350,MG20-100,MG20-450,MG20-500 |
|
Taxanaha MG25 |
MG25-25,MG25-50,MG25-75,MG25-80,MG25-100,MG25-125,MG25-150,MG25-160,M G25-175,MG25-200,MG25-250,MG25-300,MG25-350,MG25-160,MG25-450,MG25-500 |
|
Taxanaha MG32 |
MG32-25,MG32-50,MG32-75,MG32-80,MG32-100,MG32-125,MG32-150,MG32-160 MG32-175,MG32-200,MG32-250,MG32-300 |
|
Taxanaha MG40 |
MG40-25,MG40-50,MG40-75,MG40-80,MG40-100,MG40-125,MG40-150,MG40-160,M G40-175,MG40-200,MG40-250,MG40-300,MG40-350,MG40-160,MG40-450,MG40-500 |
|
Taxanaha MG50 |
MG50-25,MG50-50,MG50-75,MG50-80,MG50-100,MG50-125,MG50-150,MG50-160,M G50-175,MG50-200,MG50-250,MG50-300,MG50-350,MG50-160,MG50-450,MG50-500 |
