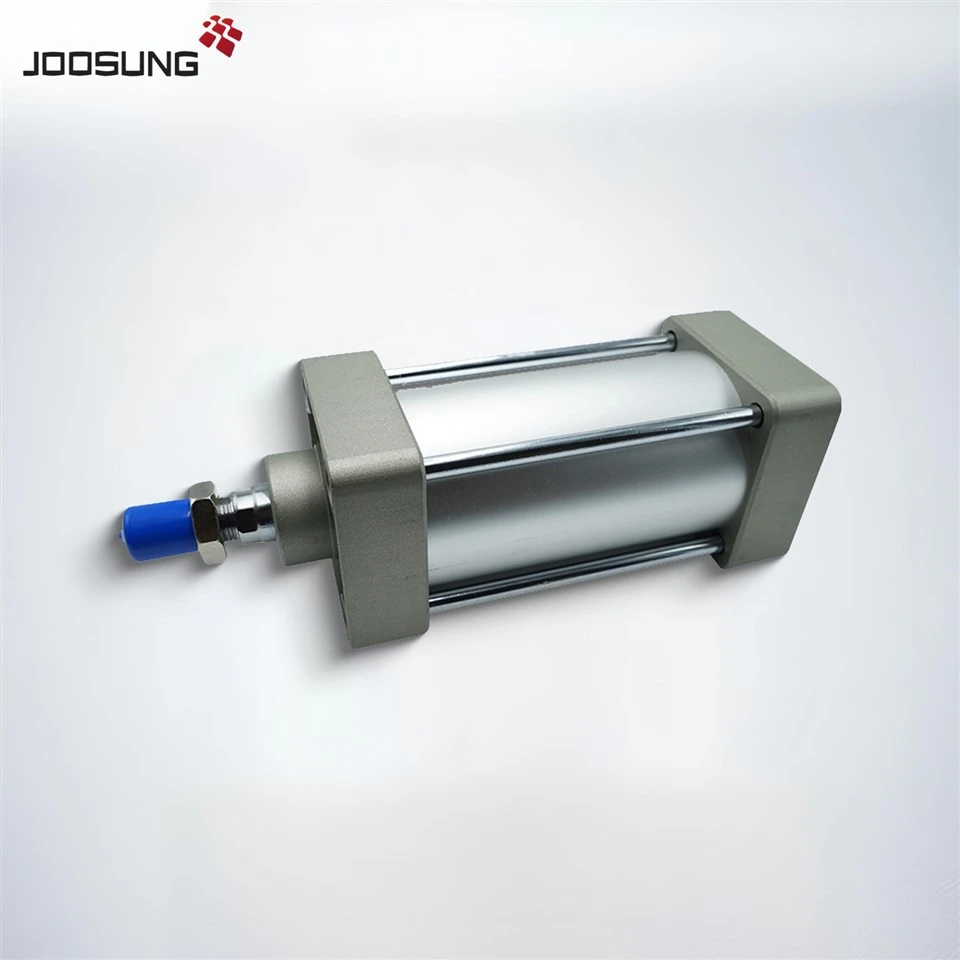

Silinda silsilada pneumatic-ka ee taxanaha SC waa halbeega caadiga ah{0}}nooca hawl-wadeenka loo dhisay si waafaqsan heerarka Airtac iyo cabbirka ISO15552. Waxa uu leeyahay labanlaab - hawlgalka jilitaanka, sare - foosto daawaha aluminiumka xoogga badan, iyo qalab kor u qaadis ah oo la beddeli karo, taas oo ka dhigaysa mid ka mid ah dhululubada ugu ballaadhan ee lagu qaato automation warshadaha.
Dhululubada SC waxaa lagu yaqaanaa adkeysigooda, waxqabad la isku halayn karo, iyo fududaynta isdhexgalka. Iyada oo leh cabbirro kala duwan oo u dhexeeya 32mm ilaa 100mm, iyo dhererka istaroogga oo la heli karo ilaa 1000mm, taxanaha SC waxa uu bixiyaa xal la taaban karo oo guud{4}} baahiyaha dhaqdhaqaaqa toosan ee ujeedada.
|
Sida loo dalbado SC Series Sylinder pneumatic |
|||||
|
S |
C |
50 |
50 |
20 |
S |
|
Qaabka |
Cabbirka bore |
Stroke Silinder |
Istaroog la hagaajin karo |
Magnet |
|
|
C:Laba jilid |
32 40 |
Maya koodkan |
Banaan: Magnet la'aan |
||
|
CD:Ul labanlaab ah |
50 63 |
S: oo leh magnet |
|||
|
CJ: Istaroog la hagaajin karo |
80 100 |
10 20 30 40 50 75 100 |
|||
Ma waxaad u raadinaysaa dhululubada pneumatic heerka ISO ee la isku halayn karo ee nidaamkaaga otomaatiga ah?
TheTaxanaha SCwuxuu keenaa waxqabad la xaqiijiyay iyo qaabeynta dabacsan ee codsiyada warshadaha ee aan la tirin karin.
Hadda nala soo xidhiidhsi aad u hesho xaashida xogta farsamada, faylasha CAD 3D, ama xigasho la habeeyey!
|
Tilmaamid |
||||||||||
|
Boor mm |
32 |
40 |
50 |
63 |
80 |
100 |
125 |
160 |
200 |
|
|
Habka Mooshinka |
Waxqabad laba jibaaran |
|||||||||
|
Dhexdhexaadinta shaqaynaysa |
Hawada la sifeeyay |
|||||||||
|
Nooca go'an |
Nooca caadiga ah / Nooca FA / Nooca FB / Nooca CA / Nooca CB / Nooca SDB / Nooca LB / |
|||||||||
|
Range cadaadiska shaqada |
0.1 ~ 1.0MPa |
|||||||||
|
La Xaqiijiyay Iska caabinta Cadaadiska |
1.5MPa |
|||||||||
|
1 Heer kulka shaqada |
-5-70 digrii |
|||||||||
|
Xawaaraha ku shaqaynta |
50 ~ 800 mm/s |
|||||||||
|
Nooca Buffer |
Buffer la hagaajin karo |
|||||||||
|
Buffer Stroke |
20mm |
26mm |
45mm |
|||||||
|
Cabbirka Dekedda |
G1/8" |
G1/4" |
G3/8" |
G1/2" |
G3/4" |
|||||
|
SCQaababka Taxanaha ah Qaababka la heli karo |
||||
|
SC32X25S |
SC32X50S |
SC32X75S |
SC32X100S |
SC32X125S |
|
SC32X150S |
SC40X50S |
SC40X75S |
SC40X100S |
SC40X125S |
|
SC40X150S |
SC40X175S |
SC40X200S |
SC40X250S |
SC50X50S |
|
SC50X75S |
SC50X80S |
SC50X100S |
SC50X125S |
SC50X150S |
|
SC50X160S |
SC50X175S |
SC50X200S |
SC50X250S |
SC50X300S |
|
SC63X75S |
SC63X80S |
SC63X100S |
SC63X125S |
SC63X150S |
|
SC63X200S |
SC63X250S |
SC63X300S |
SC63X350S |
SC80X80S |
|
SC80X100S |
SC80X125S |
SC80X150S |
SC80X175S |
SC80X200S |
|
SC80X250S |
SC80X300S |
SC80X350S |
SC80X400S |
SC80X450S |
